lsst.ip.isr

The lsst.ip.isr module provides instrument signature removal (ISR) related tasks. ISR includes steps such as combining multiple amplifiers into one full CCD image, corrections for overscans, crosstalk, bias and dark frames, and the creation of variance and mask planes.

Contributing

lsst.ip.isr is developed at https://github.com/lsst/ip_isr. You can find Jira issues for this module under the ip_isr component.

Task reference

Tasks

AssembleCcdTask

Assemble a set of amplifier images into a full detector size set of pixels.

Python API reference

lsst.ip.isr Package

Functions

applyGains(exposure[, normalizeGains, ...])	Scale an exposure by the amplifier gains.
applyLookupTable(*args, **kwargs)	Overloaded function.
attachTransmissionCurve(exposure[, ...])	Attach a TransmissionCurve to an Exposure, given separate curves for different components.
biasCorrection(maskedImage, biasMaskedImage)	Apply bias correction in place.
binExposure(inputExposure[, binFactor])	Bin an exposure to reduce its spatial dimensions.
brighterFatterCorrection(exposure, kernel, ...)	Apply brighter fatter correction in place for the image.
checkFilter(exposure, filterList, log)	Check to see if an exposure is in a filter specified by a list.
countMaskedPixels(maskedIm, maskPlane)	Count the number of pixels in a given mask plane.
createPsf(fwhm)	Make a double Gaussian PSF.
darkCorrection(maskedImage, darkMaskedImage, ...)	Apply dark correction in place.
fitOverscanImage(*args, **kwargs)	Overloaded function.
fitOverscanImageMean(*args, **kwargs)	Overloaded function.
flatCorrection(maskedImage, flatMaskedImage, ...)	Apply flat correction in place.
fluxConservingBrighterFatterCorrection(...)	Apply brighter fatter correction in place for the image.
gainContext(exp, image, apply[, gains, ...])	Context manager that applies and removes gain.
getExposureGains(exposure)	Get the per-amplifier gains used for this exposure.
getExposureReadNoises(exposure)	Get the per-amplifier read noise used for this exposure.
getPhysicalFilter(filterLabel, log)	Get the physical filter label associated with the given filterLabel.
growMasks(mask[, radius, maskNameList, ...])	Grow a mask by an amount and add to the requested plane.
illuminationCorrection(maskedImage, ...[, ...])	Apply illumination correction in place.
interpolateDefectList(maskedImage, ...[, ...])	Interpolate over defects specified in a defect list.
interpolateFromMask(maskedImage, fwhm[, ...])	Interpolate over defects identified by a particular set of mask planes.
makeThresholdMask(maskedImage, threshold[, ...])	Mask pixels based on threshold detection.
makeThumbnail(exposure[, isrQaConfig])	Create a snapshot thumbnail from input exposure.
maskNans(*args, **kwargs)	Overloaded function.
saturationCorrection(maskedImage, ...[, ...])	Mark saturated pixels and optionally interpolate over them
setBadRegions(exposure[, badStatistic])	Set all BAD areas of the chip to the average of the rest of the exposure
transferFlux(cFunc, fStep[, correctionMode])	Take the input convolved deflection potential and the flux array to compute and apply the flux transfer into the correction array.
transposeMaskedImage(maskedImage)	Make a transposed copy of a masked image.
trimToMatchCalibBBox(rawMaskedImage, ...)	Compute number of edge trim pixels to match the calibration data.
updateVariance(maskedImage, gain, readNoise)	Set the variance plane based on the image plane.
widenSaturationTrails(mask)	Grow the saturation trails by an amount dependent on the width of the trail.

Classes

AmpOffsetConfig(*args, **kw)	Configuration parameters for AmpOffsetTask.
AmpOffsetTask(*args, **kwargs)	Calculate and apply amp offset corrections to an exposure.
AssembleCcdConfig(*args, **kw)
AssembleCcdTask(**kwargs)	Assemble a set of amplifier images into a full detector size set of pixels.
BfKernelMock(**kwargs)	Simulated brighter-fatter kernel.
BfKernelMockLSST(**kwargs)	Simulated brighter-fatter kernel.
BiasMock(**kwargs)	Simulated master bias calibration.
BiasMockLSST(**kwargs)	Simulated combined bias calibration.
BinExposureConfig(*args, **kw)	Config for BinExposureTask
BinExposureTask(*[, config, log, initInputs])	Perform an nxn binning of an Exposure dataset type.
BrighterFatterKernel([camera, level])	Calibration of brighter-fatter kernels for an instrument.
CalibratedRawMock(**kwargs)	Generate a trimmed raw exposure.
CalibratedRawMockLSST(**kwargs)	Generate a trimmed raw exposure.
CountMaskedPixelsD
CountMaskedPixelsF
CountMaskedPixelsI
CrosstalkCalib([detector, nAmp])	Calibration of amp-to-amp crosstalk coefficients.
CrosstalkCoeffMock(**kwargs)	Simulated crosstalk coefficient matrix.
CrosstalkCoeffMockLSST(**kwargs)	Simulated crosstalk coefficient matrix.
CrosstalkConfig(*args, **kw)	Configuration for intra-detector crosstalk removal.
CrosstalkTask([config, name, parentTask, log])	Apply intra-detector crosstalk correction.
DarkMock(**kwargs)	Simulated master dark calibration.
DarkMockLSST(**kwargs)	Simulated reference dark calibration.
DefectMock(**kwargs)	Simulated defect list.
DefectMockLSST(**kwargs)	Simulated defect list.
Defects([defectList, metadata, ...])	Calibration handler for collections of lsst.meas.algorithms.Defect.
DeferredChargeCalib(**kwargs)	Calibration containing deferred charge/CTI parameters.
DeferredChargeConfig(*args, **kw)	Settings for deferred charge correction.
DeferredChargeTask([config, name, ...])	Task to correct an exposure for charge transfer inefficiency.
FlatMock(**kwargs)	Simulated master flat calibration.
FlatMockLSST(**kwargs)	Simulated reference flat calibration.
FloatingOutputAmplifier(gain, scale, decay_time)	Object representing the readout amplifier of a single channel.
FringeConfig(*args, **kw)	Fringe subtraction options
FringeMock(**kwargs)	Simulated master fringe calibration.
FringeMockLSST(**kwargs)	Simulated reference fringe calibration.
FringeStatisticsConfig(*args, **kw)	Options for measuring fringes on an exposure
FringeTask([config, name, parentTask, log])	Task to remove fringes from a science exposure
IntermediateAtmosphereTransmissionCurve([...])
IntermediateFilterTransmissionCurve([filename])
IntermediateOpticsTransmissionCurve([filename])
IntermediateSensorTransmissionCurve([filename])
IntermediateSystemTransmissionCurve([filename])
IntermediateTransmissionCurve([filename])	Definition for the TransmissionCurve format used as inputs.
IsrCalib([camera, detector, log])	Generic calibration type.
IsrMock(**kwargs)	Class to generate consistent mock images for ISR testing.
IsrMockConfig(*args, **kw)	Configuration parameters for isrMock.
IsrMockLSST(**kwargs)	Class to generate consistent mock images for ISR testing.
IsrMockLSSTConfig(*args, **kw)	Configuration parameters for isrMockLSST.
IsrProvenance([calibType])	Class for the provenance of data used to construct calibration.
IsrQaConfig(*args, **kw)
IsrQaFlatnessConfig(*args, **kw)
IsrStatisticsTask([statControl])	Task to measure arbitrary statistics on ISR processed exposures.
IsrStatisticsTaskConfig(*args, **kw)	Image statistics options.
IsrTask(**kwargs)	Apply common instrument signature correction algorithms to a raw frame.
IsrTaskConfig(*args, **kw)	Configuration parameters for IsrTask.
IsrTaskLSST(**kwargs)
IsrTaskLSSTConfig(*args, **kw)	Configuration parameters for IsrTaskLSST.
LinearizeBase()	Abstract base class functor for correcting non-linearity.
LinearizeLookupTable()	Correct non-linearity with a persisted lookup table.
LinearizeNone()	Do not correct non-linearity.
LinearizePolynomial()	Correct non-linearity with a polynomial mode.
LinearizeProportional()	Do not correct non-linearity.
LinearizeSpline()	Correct non-linearity with a spline model.
LinearizeSquared()	Correct non-linearity with a squared model.
Linearizer([table])	Parameter set for linearization.
MaskingConfig(*args, **kw)
MaskingTask([config, name, parentTask, log])	Perform extra masking for detector issues such as ghosts and glints.
MasterMock(**kwargs)	Parent class for those that make master calibrations.
MockDataContainer(**kwargs)	Container for holding ISR mock objects.
MockFringeContainer(**kwargs)	Container for mock fringe data.
NullCrosstalkTask([config, name, ...])
OverscanAmpConfig(*args, **kw)	Overscan configurations applicable to a single amplifier.
OverscanCameraConfig(*args, **kw)	Overscan configurations applicable to multiple detectors in a single camera.
OverscanCorrectionTask([statControl])	Correction task for serial/parallel overscan.
OverscanCorrectionTaskConfig(*args, **kw)
OverscanDetectorConfig(*args, **kw)	Overscan configurations applicable to multiple amplifiers in a single detector.
OverscanModel()	Base class for handling model/data fit comparisons.
ParallelOverscanCorrectionTask([statControl])	Correction task for parallel overscan.
ParallelOverscanCorrectionTaskConfig(*args, **kw)
PhotodiodeCalib([timeSamples, currentSamples])	Independent current measurements from photodiode for linearity calculations.
PhotodiodeCorrection([table])	Parameter set for photodiode correction.
PhotonTransferCurveDataset([ampNames, ...])	A simple class to hold the output data from the PTC task.
RawDictMock(**kwargs)	Generate a raw exposure dict suitable for ISR.
RawMock(**kwargs)	Generate a raw exposure suitable for ISR.
RawMockLSST(**kwargs)	Generate a raw exposure suitable for ISR.
ReferenceMockLSST(**kwargs)	Parent class for those that make reference calibrations.
SegmentSimulator(imarr, prescan_width, ...)	Controls the creation of simulated segment images.
SerialOverscanCorrectionTask([statControl])	Correction task for serial overscan.
SerialOverscanCorrectionTaskConfig(*args, **kw)
SerialTrap(size, emission_time, pixel, ...)	Represents a serial register trap.
SimpleModel()	Simple analytic overscan model.
SimulatedModel()	Simulated overscan model.
StrayLightConfig(*args, **kw)
StrayLightData([camera, detector, log])	An abstract base class for rotator-dependent stray light information.
StrayLightTask([config, name, parentTask, log])	Remove stray light from instruments.
TransmissionMock(**kwargs)	Simulated transmission curve.
TransmissionMockLSST(**kwargs)	Simulated transmission curve.
TrimmedRawMock(**kwargs)	Generate a trimmed raw exposure.
UntrimmedFringeMock(**kwargs)	Simulated untrimmed master fringe calibration.

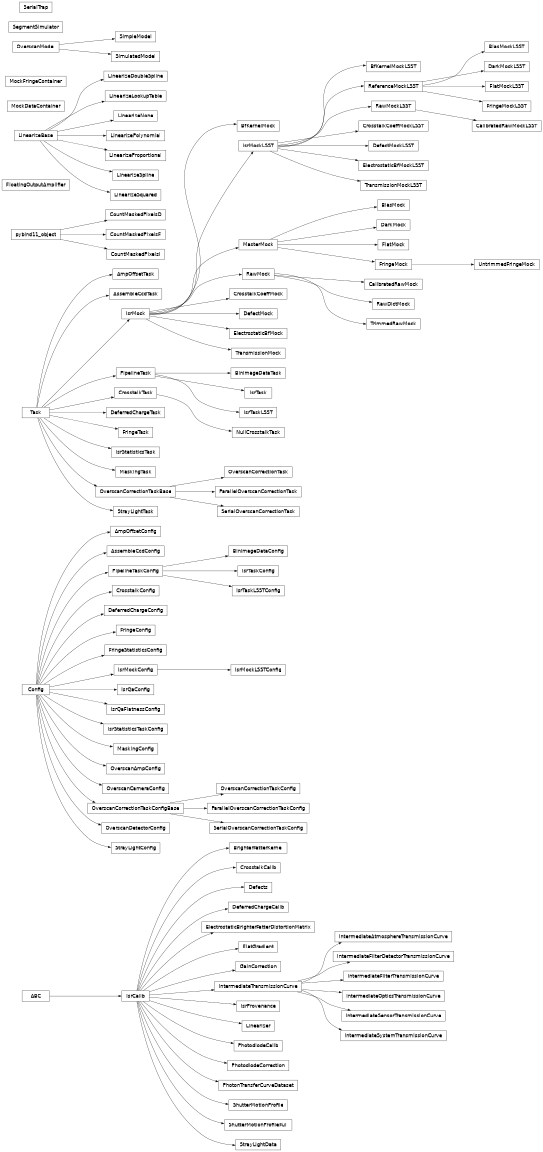

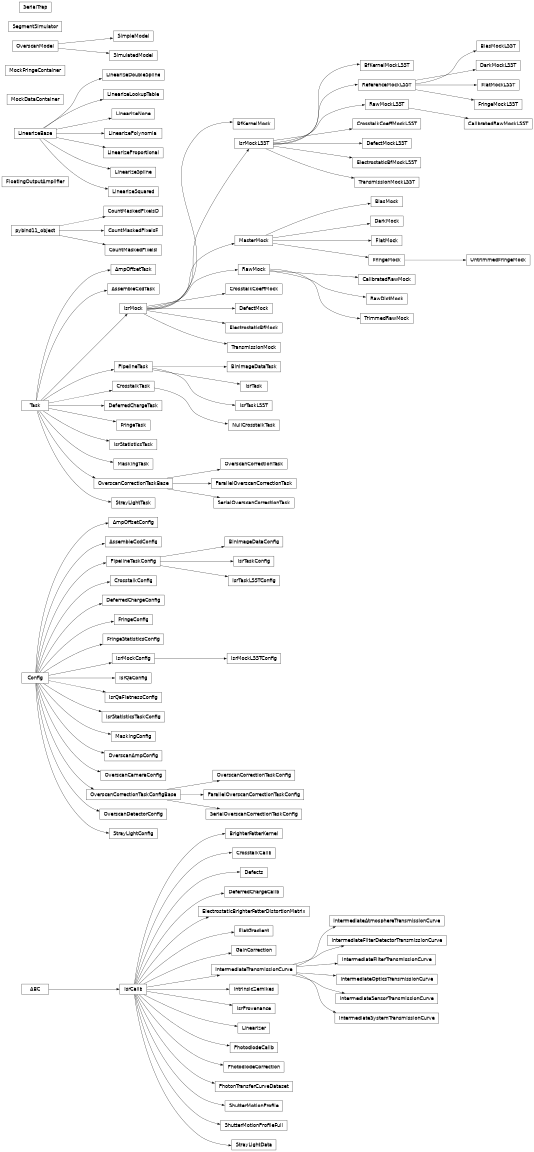

Class Inheritance Diagram
